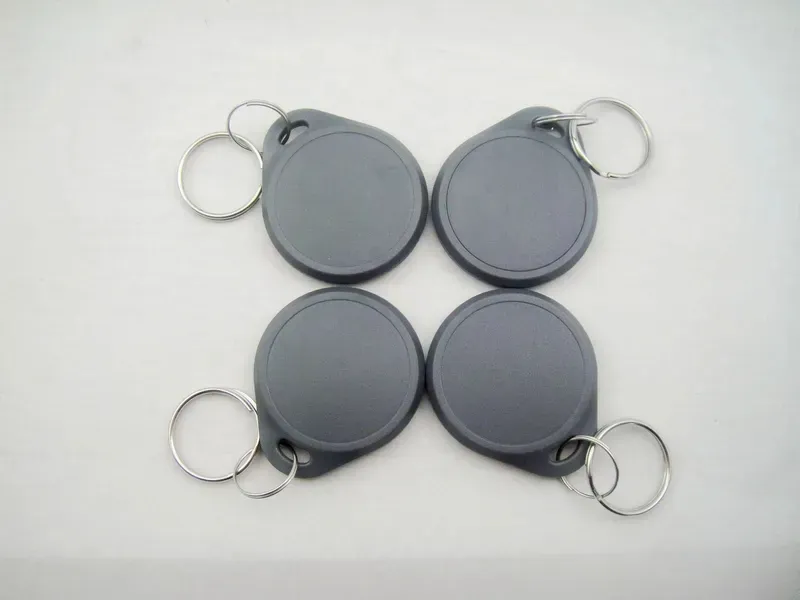

Awọn aami bọtini RFID
Awọn taagi Bọtini RFID jẹ awọn bọtini Smart ti a lo fun awọn ohun elo oṣiṣẹ,…
Tag cable RFID
RFID Cable Tag offer benefits in cable management, eekaderi titele,…
Rf ọṣọ aami asọ ti rf
Aami aami rirọ rf jẹ ojutu egboogi-ole ti o gbaju fun…
Awọn iroyin to ṣẹṣẹ
Apejuwe kukuru:
RFID Seal Tag cable ties are made of ABS material and come in various colors. They are suitable for water and harsh environments and have a long reading distance, making them ideal for large warehouse management. The tags can be embedded with RFID chips for managing cables, awọn ile-iṣẹ, and funding sources. They have a memory capacity of 96bit and can be customized.
Pin wa:
Alaye ọja
RFID Seal Tag cable ties are made of ABS material and are available in different colors such as yellow/green/blue. RFID cable tags can be used in water and harsh outdoor environments.
UHF cable tie tags have a long reading distance, which is very suitable for large warehouse management. Fun apere, using UHF cable tie tags and UHF handheld readers, the reading distance can reach 3 meters or more. Ni afikun, the anti-collision characteristics of UHF make actual operation easier. The reader can detect multiple tags at a time, so we don’t need to detect tags one by one, which saves a lot of time.
Embed RFID chips inside cable ties for managing cables, awọn ile-iṣẹ, funding sources, ati be be lo. The data inside the chip is detected by the RFID reader and transmitted to the system to control the information you need. We call these small RFID hardware RFID cable tie tags.
Ifa
| Oun elo | Eniyan |
| working Mode | Ka & Write |
| Iwọn: | 32*200mm,32x370mm |
| Read distance | 1-10M (depends on using condition) |
| Available Crafts | Silkscreen printing (logo), Laser engraving (barcode/numbering), Koodu QR, ati be be lo |
|
Chip Wa | Lf:EM4100 , H4100 ,TK4100,EM4200,EM4305, EM4450, EM4550,T5577,etc |
| Hf: MF S50,MF Desfire ev1,MF Desfire ev2,F08,NFC213/215/216,I-CODE SLI-S,ati be be lo | |
| Uhf:U code 8,U code 9,etc |
Awọn ẹya
- Tag size: 32MM Cable tie length 200mm (isọdi)
- Ilana ọja: inlay
- Ohun elo mimọ: ABS plastic package
- Agreement: 18000-6c
- Chip model: U9 Memory capacity: 96bit
- Induction frequency: 915Mho
- Ka ati kikọ ijinna: 0-40CM, (different power readers will have differences.)
- Otutu: -10℃～+75℃ (cable ties below 10℃ need to be customized, with cold-resistant materials)
- Otutu otutu: -10℃～+65℃ (cable ties below 10℃ need to be customized, with cold-resistant materials)
- Data is stored for 10 awọn ọdun, and the memory can be erased and written 100,000 igba
- Label application range: eekaderi isakoso, package circulation management, ile ise isakoso, cables, cables, and other assets.
- (Note: label size and chip can be customized according to customer requirements)
- Weight 3.2g. 50 PCS/bag.
